Unified Modelling Language

We have already seen UML in Data Base Management System’s Course. In a real life project we get a problem statement from the customers. This statement is given to a separate team where they gather the requirements. The analysts then look at it and define the feasibility of it. Considering the time duration taken to complete the tasks and the features itself. There will be functionalities that can’t be made into real life solutions. After this process this will be presented to the customers again. It is then that the Deliverables are fixed.

After the process of doing all rnd we just talked about the team talks to developers. Rather than writing down in the form of pages we give the list of functionalities to the development team. There will be a visual diagram given to them that shows them the flow of the functionalities. The diagram can be created with such detail that the developers don’t have to mind about getting any other documentation regarding the problem statement.

Students will be given the diagrams in lab and then they are going to be asked to develop a program for the diagram

Summary

  • Requirement Gathering
  • Feasibility Analysis
  • Customer Approval
  • Development Handoff

Example ecommerce: register, add to cart, payment gateway can be represented in a diagram.

Rational Rose

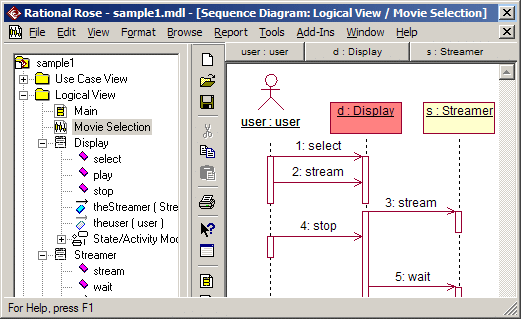

The Rational Rose is an application developed by IBM. This application takes a diagram as an input that is to be visualised by the developer that the application converts into code. Earlier it used to give C++ code but now it can give any programming language ( Quoting ma’am ) that is suitable for the project. It is not a replacement to the entire project being programmed but it gives the user a structured pre processed code.

Why even bring this up?

The customers earlier used to pay for atleast 600 lines for the task that Rational Rose does. But now that this app can generate that code they save money with this application.

center

Examples

CircleDescription
- Radius: Double
- Number of objects		- Represents the radius of the circle.
- Keeps track of the number of circle objects created.
+ Circle()
+ Circle(radius: double)
+ getRadius(): double
+ getNumberOfObjects(): int		- Constructs a default circle object with a radius of 1.0.
- Constructs a circle object with the specified radius.
- Returns the radius of the circle.
- Returns the number of circle objects created.
The description diagram is there for explaining the left components. The actual diagram doesn’t include that. The actual diagram actually looks like this
Circle
- Radius: Double
- Number of objects
+ Circle()
+ Circle(radius: double)
+ getRadius(): double
+ getNumberOfObjects(): int

Types of Associations in UML

Association Types

In Unified Modeling Language (UML), associations represent relationships between classes. These associations can be categorized into different types based on the nature of the relationship. Here are the main types of associations:

graph TD
    A[Types of association] --> B[IS-A]
    A --> C[HAS-A]
    C --> D[Aggregation]
    C --> E[Composition]

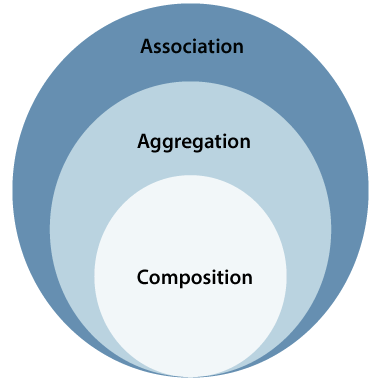

The diagram shows the association types in a venn diagram center

One-to-One (1:1) Association

  • Description: Each instance of one class is associated with exactly one instance of another class.
  • Example: A Person has one Passport, and a Passport belongs to one Person.

One-to-Many (1:N) Association

  • Description: An instance of one class is associated with multiple instances of another class.
  • Example: A Teacher teaches many Students, but each Student is taught by one Teacher.

Many-to-One (N:1) Association

  • Description: Multiple instances of one class are associated with one instance of another class.
  • Example: Many Students can belong to one Classroom.

Many-to-Many (M:N) Association

  • Description: Instances of each class can be associated with multiple instances of the other class.
  • Example: Students can enroll in multiple Courses, and each Course can have multiple Students.

Java Code for Association

Below is a Java code example that demonstrates a One-to-Many relationship between a Bank and its Employees.

import java.io.*;
import java.util.Scanner;

class Bank {
    private String name;

    Bank(String name) {
        this.name = name;
    }

    public String getBankName() {
        return this.name;
    }
}

class Employee {
    private String name;

    Employee() { }

    Employee(String name) {
        this.name = name;
    }

    public String getEmployeeName() {
        return this.name;
    }
}

class Association {
    public static void main(String[] args) {
        String name;
        Scanner inp = new Scanner(System.in);
        Bank bank = new Bank("Axis");
        Employee[] emp = new Employee[4];

        for (int i = 0; i < 4; i++) {
            name = inp.next();
            emp[i] = new Employee(name);
        }

        for (int i = 0; i < 4; i++) {
            System.out.println(emp[i].getEmployeeName() +
                " is employee of " + bank.getBankName());
        }
    }
}

Diagram Representation

graph TD;
    A[Bank: Axis] --> B[Employee 1]
    A[Bank: Axis] --> C[Employee 2]
    A[Bank: Axis] --> D[Employee 3]
    A[Bank: Axis] --> E[Employee 4]

Expected Output:

aaa is employee of Axis
ccc is employee of Axis
mmm is employee of Axis
ttt is employee of Axis

Explanation:

  • The array Employee[] emp = new Employee[4]; implies a one-to-many relationship, where one Bank has multiple Employees.
  • The loop iterates over the Employee array, associating each Employee with the Bank.

Advanced Association Types

Aggregation

  • Description: A special type of association representing a “whole-part” relationship where the part can exist independently of the whole.
  • Example: A University has multiple Departments, but a Department can exist without the University.

Example

Below is a Java code example that demonstrates aggregation between an Employee and their Address. In this scenario, an Address can exist independently of an Employee.


public class Address {
    String city, state, country;

    public Address(String city, String state, String country) {
        this.city = city;
        this.state = state;
        this.country = country;
    }
}

public class Emp {
    int id;
    String name;
    Address address;

    public Emp(int id, String name, Address address) {
        this.id = id;
        this.name = name;
        this.address = address;
    }

    void display() {
        System.out.println(id + " " + name);
        System.out.println(address.city + " " + address.state + " " + address.country);
    }

    public static void main(String[] args) {
        Address address1 = new Address("gzb", "UP", "India");
        Address address2 = new Address("gno", "UP", "India");

        Emp e1 = new Emp(111, "Varun", address1);
        Emp e2 = new Emp(112, "Arun", address2);

        e1.display();
        e2.display();
    }
}

graph TD;
    A[Employee: Varun] --> B[Address: gzb, UP, India];
    C[Employee: Arun] --> D[Address: gno, UP, India];

Output

graph TD;
    A[Employee: Varun] --> B[Address: gzb, UP, India];
    C[Employee: Arun] --> D[Address: gno, UP, India];

Composition

  • Description: A stronger form of aggregation where the part cannot exist independently of the whole.
  • Example: A Book contains Pages, and Pages cannot exist without the Book.

Example

class Car {
    // Final ensures that engine is initialized once and cannot be changed
    private final Engine engine;
    String nameOfCar;
    String model;

    public Car(String nameOfCar, String model) {
        engine = new Engine("POWERHIGH", "ABC");
        this.nameOfCar = nameOfCar;
        this.model = model;
    }

    public void showAllDetails() {
        System.out.println("Name of Car = " + nameOfCar);
        System.out.println("Name of Model = " + model);
        System.out.println("Engine used in Car = " + engine.typeOfEngine);
        System.out.println("Engine name of Car = " + engine.nameOfEngine);
    }
}

class Engine {
    String typeOfEngine;
    String nameOfEngine;

    Engine(String typeOfEngine, String nameOfEngine) {
        this.typeOfEngine = typeOfEngine;
        this.nameOfEngine = nameOfEngine;
    }
}

class ShowRoom {
    public static void main(String arg[]) {
        Car car = new Car("BMW", "5X");
        car.showAllDetails();
    }
}

Key Concept:

  • The Engine object inside Car is declared final, meaning once initialized, it cannot be reassigned to another Engine object.
  • However, its attributes (typeOfEngine, nameOfEngine) can still be modified unless explicitly made immutable.

Diagram Representation

graph TD;
    A[Car: BMW] --> B[Model: 5X];
    A[Car: BMW] --> C[Engine: POWERHIGH];
    C --> D[Engine Name: ABC];

Expected Output:

Name of Car = BMW
Name of Model = 5X
Engine used in Car = POWERHIGH
Engine name of Car = ABC

Reflexive Association

  • Description: An association where a class is related to itself.
  • Example: An Employee can have a relationship with another Employee (e.g., manager-subordinate relationship).

Visual Representation

  • Aggregation: Represented by a hollow diamond shape on the “whole” end of the association line.
  • Composition: Represented by a filled diamond shape on the “whole” end of the association line.
  • Reflexive Association: Represented by a line looping back to the same class.

Understanding these association types is crucial for accurately modeling relationships between classes in UML, which helps in designing robust and maintainable software architectures.
